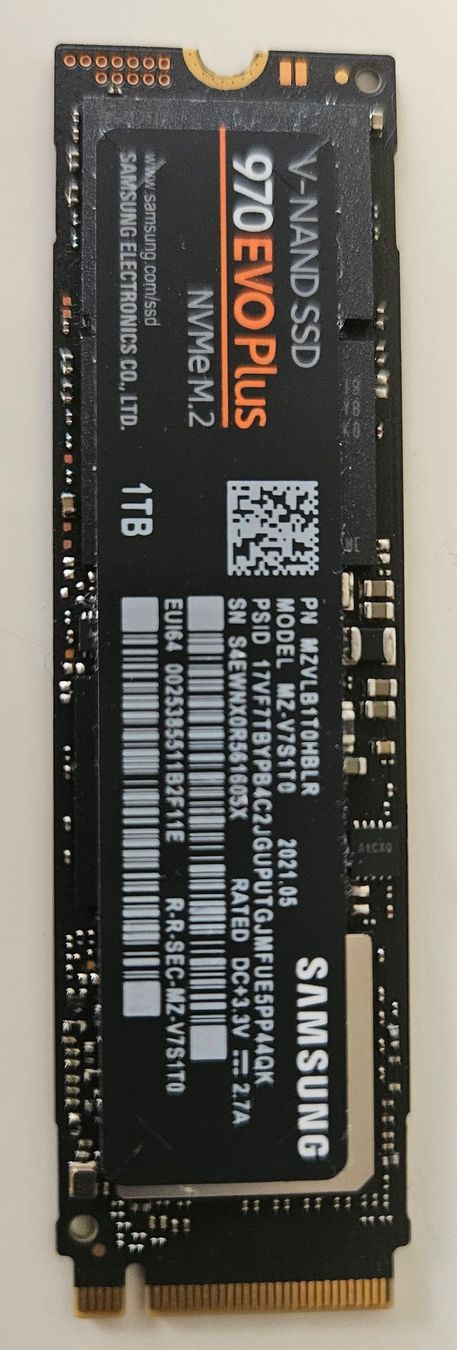

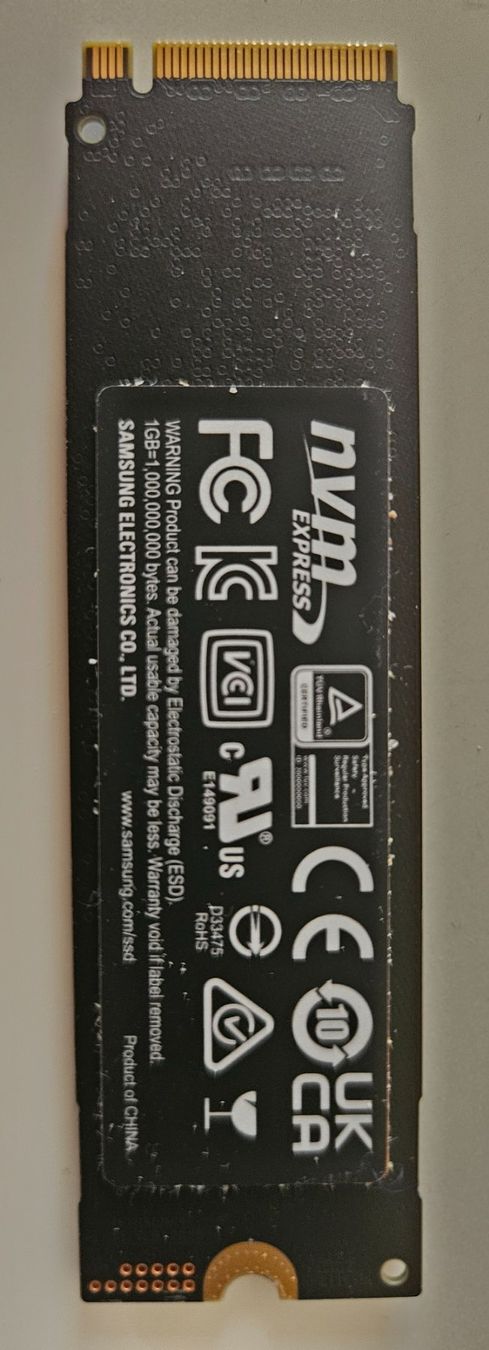

1TB Samsung 970 EvoPlus M.2 NVMe
SPECIFICATIONS
- Usage Application: Client PCs
- Interface: PCIe®Gen 3.0 x4, NVMe™ 1.3
- Controller: Samsung in-house Controller
- NAND Flash Memory: Samsung V-NAND 3bit MLC
- DRAM Cache Memory: 1GB LPDDR4
- Dimension: Max 80.15 x Max 22.15 x Max 2.38 (mm)
- Form Factor: M.2 (2280) 2)
Performance (Up to.)
- Sequential Read: 3500 MB/s
- Sequential Write: 3300 MB/s
QD 1
- Thread 1 Ran. Read: 19K IOPS
- Ran. Write: 60K IOPS
QD 32
- Thread 4 Ran. Read: 600K IOPS
- Ran. Write: 550K IOPS
- Power Consumption
- Idle (ASPT on): 30mW
- Active (Avg.) Read: 5.5 W
- Write: 6 W
- L1.2 mode: 5 mW
- Reliability
- Temp. Operating: 0°C to 70°C
- Non-Operating: -45°C to 85°C
- Humidity: 5% to 95% non-condensing
- Shock Non-Operating: 1,500G(Gravity), duration: 0.5ms, 3 axis
- Vibration Non-Operating: 20~2,000Hz, 20G
- MTBF: 1.5 million hours
- Warranty, TBW: 600TB
)
