Delivery time: from 1 to 3 days (all of Switzerland) from the date of payment.
Description:
1. Advanced maximum power tracking technology, efficiency at least 99.5%. High-quality components improve system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guaranteed tracking performance.
2. Large LCD display, charge and discharge display, cumulative electricity demand and discharge, temperature display, control lamp + delay control; Adjustable charge and discharge parameters, with power-off memory and other functions.
3. Dual USB output, maximum current 2.5A, supports Apple mobile phone charging.
Equipped with all the necessary safety devices, the parameters of the control system are adjustable, easy to set up and operate.
4. Short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-healing function, will not damage the controller.
Features:
1. Real-time display of temperature, charging current and discharge current
2. Current charging tracking autofocus, high charging efficiency, charging process does not stop detection, two-way focus tracking.
3. Charging 12V /24V lithium battery, super wide charge and discharge adjustable
4. Minutes are adjusted when the output is off, which is more convenient (no adjustment when the market is available only).
5. Built-in overheating, over current, short circuit, open circuit protection, troubleshooting, automatic controller recovery
6. Double-sided MOS tube with backflow protection, high power charging mode, ultra low heat.
7. R5.0 DC connector for solar charging, R5.0 DC lamp output, easy to connect

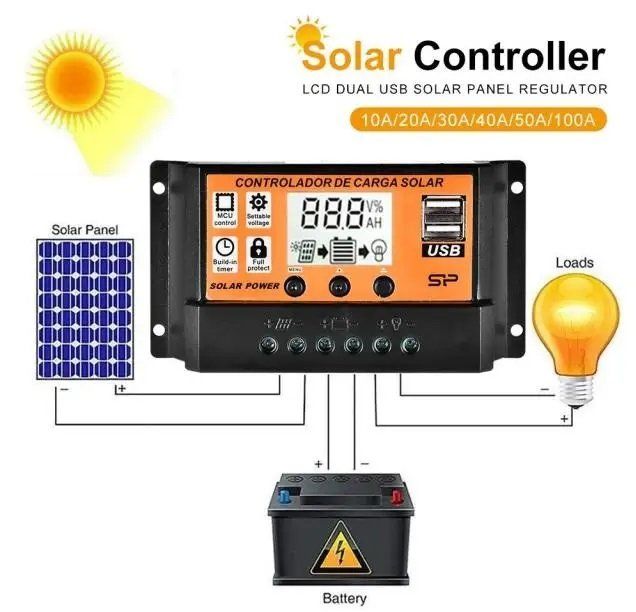

Description of PV system capacity:
100A rechargeable batteries of 12V photovoltaic system: power is 840W, respectively
100A battery of 24V photovoltaic system: power is 1680W, respectively
Specification:

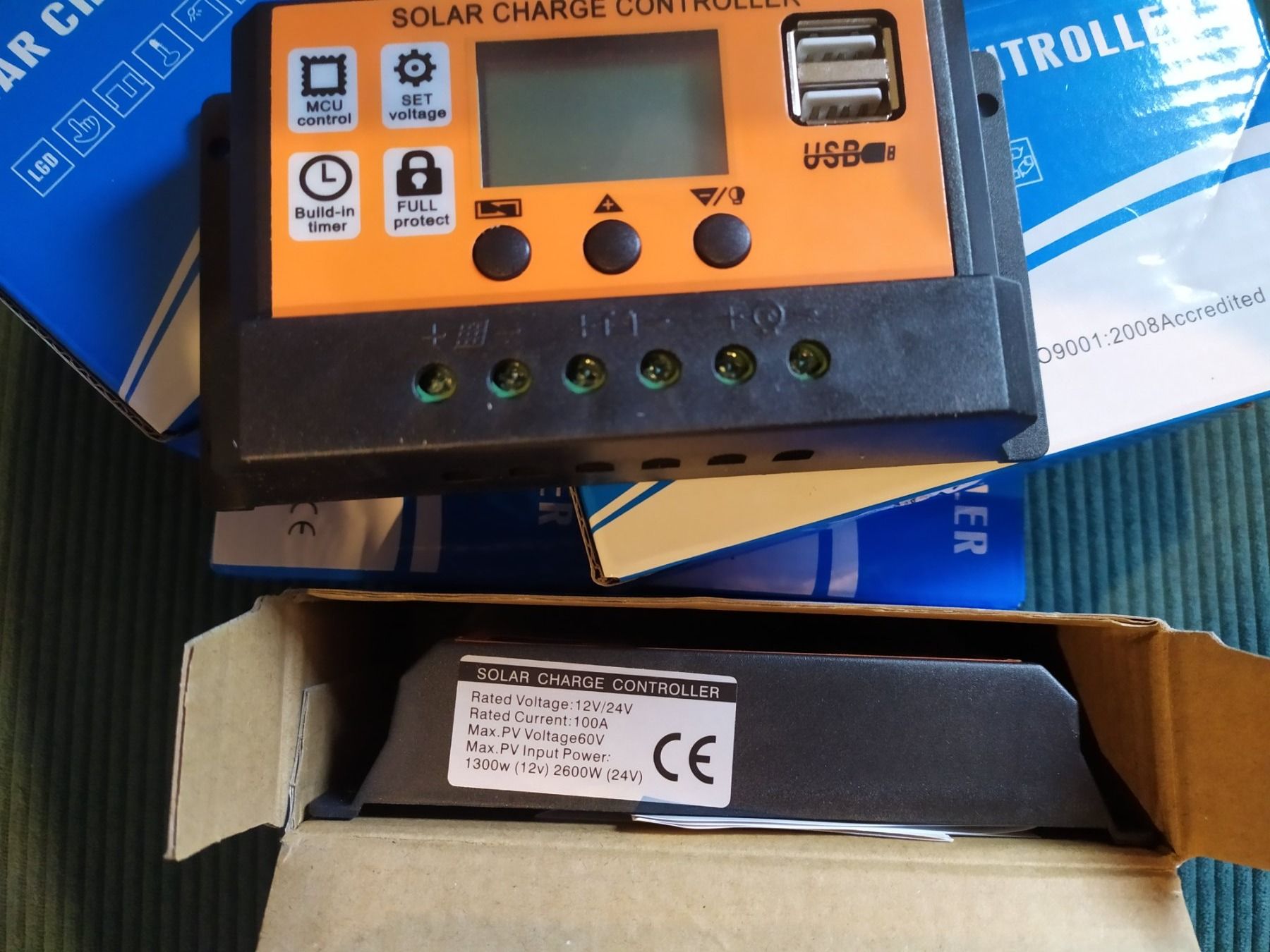

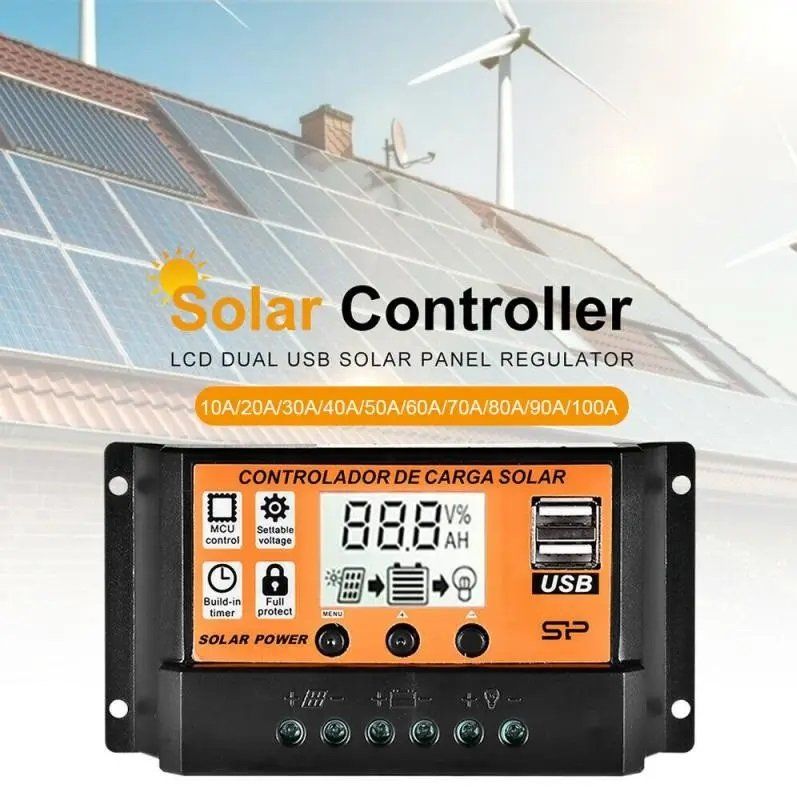

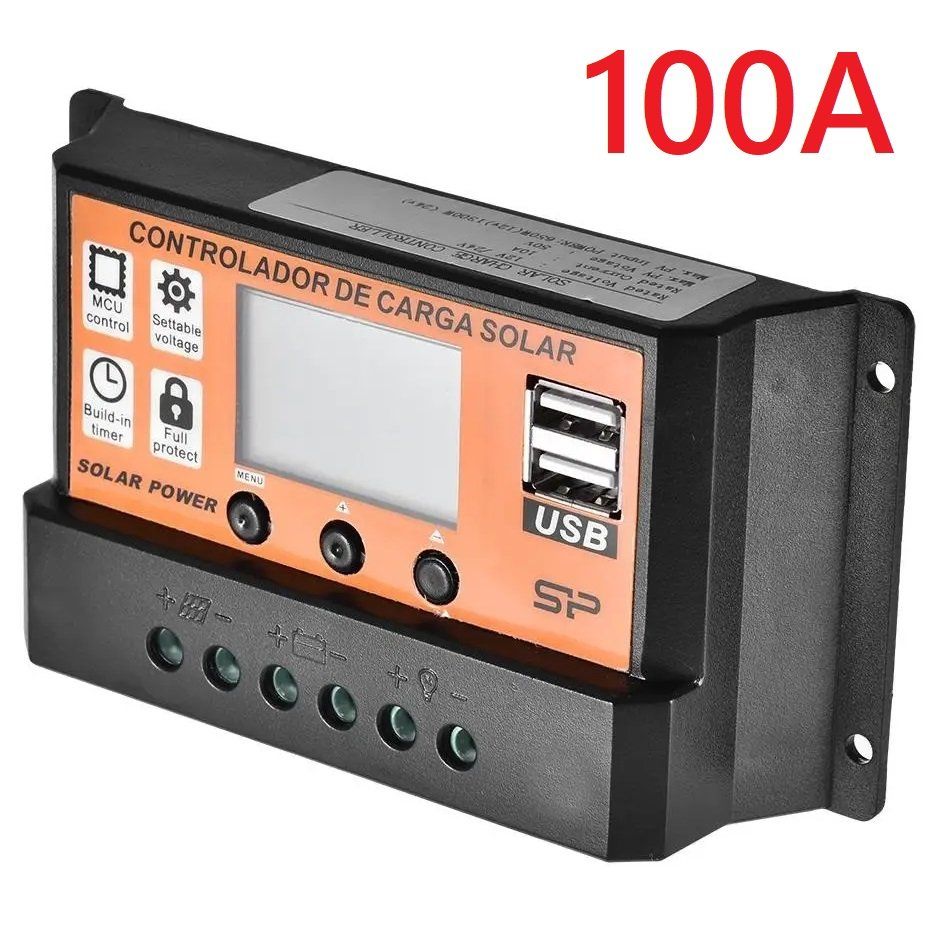

Name: Solar controller with LCD screen
Voltage: 12V/24V DC
Display: LCD screen
Self-consumption: < 10 mA
Overcharge protection thanks to: 14.4V/28.8V
Recharging Float charge: 13.7V/27.4V
Recharge voltage: 12.6V/25.2V
Overload protection: 10.7V/21.4V
compared to reset recovery: 12.6V/25.2V
Dual USB output: 5V/2A (charge mobile phone, iPad, etc.)
Operating temperature: -35 ? -60 ?
12V suitable for 18V solar panels, 24V suitable for e-bike 36V solar panels
A 12.0 volt lead acid battery is suitable
The float voltage is set to: 13.6
The restoring voltage of the discharge is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery, suitable
The float voltage is set to: 14.6
The restoring voltage of the discharge is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery is suitable
The float voltage is set to: 12.6
Restoring the discharge voltage is set to: 11.6
The critical discharge voltage is set to: 9.6
Function:
1. Always keep the battery at full voltage.
2. Prevents overcharging the battery.
3. Prevents excessive discharge of the battery.
4. Prevents the battery from reverse charging to the solar panels at night.
5. Reverse polarity protection for battery
6. Reverse polarity protection for solar panels
7. When the battery voltage is low, the controller automatically disconnects the load from the system. If the battery voltage returns to normal and the load restarts.
8. According to the battery voltage class, the controller will automatically set the charge cut-off voltage, the load cut-off voltage, and the load recovery voltage. (The default setting is less than 25?
A state blocked by a CPU procedure cannot adjust.)
9. The controller automatically compensates the temperature of the charging voltage depending on the change in the ambient temperature.
10. Lightning protection
