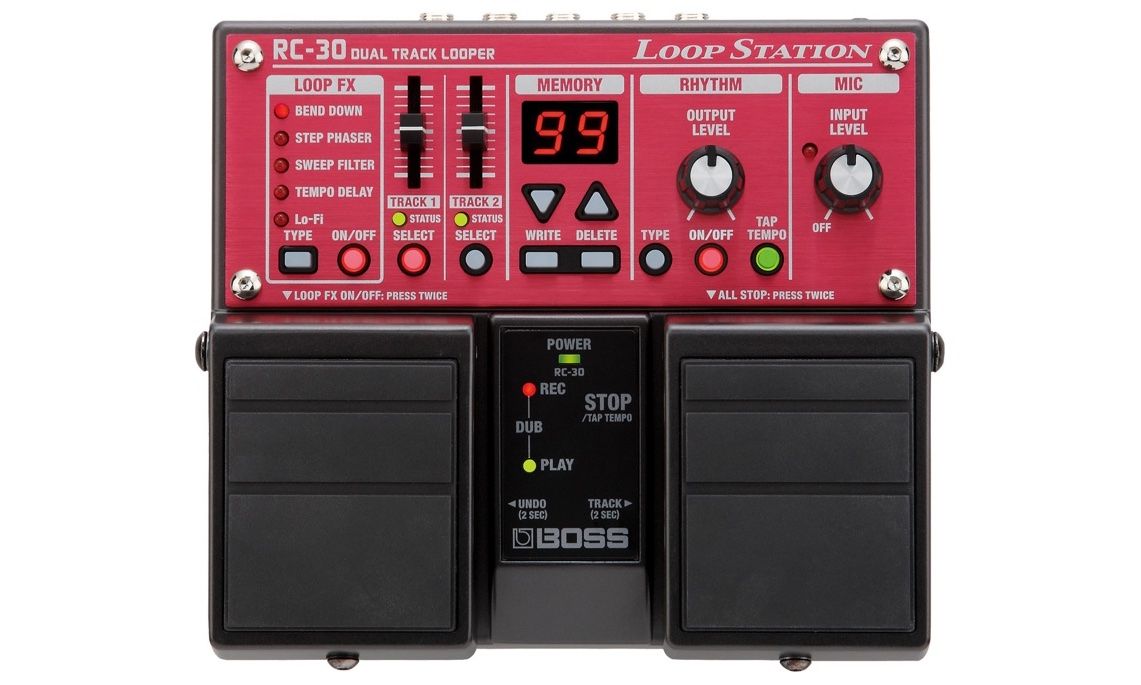

Dual Track Looper by Boss
Perfect for recording and overdubbing multiple loops for live performances, jamming alone at home or experimenting sound pieces.
Use many times but still work perfectly.
!Power supply and Battery not include!
Specifications
General
- Maximum Recording Time: 3 Hours Approx.
- Maximum Phrase Memory: 99 Phrases
- Number of Tracks: 2
- Data Format: WAV (44.1 kHz, 16-Bit Linear, Stereo)
- Rhythm Type: Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R&B, Latin, Percussion
- Effect Type: Bend Down, Step Phaser, Sweep Filter, Tempo Delay, Lo-Fi
- Display: 7 Segments, 2 Characters (LED)
- USB Interface: Hi-Speed USB mass storage device class
- Accessories: Owner’s Manual, Leaflets, Alkaline Battery (AA, LR6) x 6
Controls
- Sliders: Track 1, Track 2
- Knobs: Mic Input Level, Rhythm Output Level
- Switches: Rec/Play/Overdub, Stop/Tap Tempo, Phantom
- Buttons: Memory Down, Memory Up, Memory Write, Memory Delete, Rhythm On/Off, Rhythm Type, Rhythm Tap Tempo, Track 1 Select, Track 2 Select, Loop FX Type
- Indicators: Power, Rec/Play (Dub), Peak, Track 1 Status, Track 2 Status, Bend Down, Step Phaser, Sweep Filter, Tempo Delay, Lo-Fi
Connections
- Nominal Input Level:
- Mic In: -40 dBu (variable)
- Inst In: -20 dBu
- Aux In: -10 dBu
- Input Impedance:
- Mic In: 4 kOhms
- Inst In: 1 M Ohms
- Aux In: 22 kOhms
- Nominal Output Level: -20 dBu
- Output Impedance: 1 kOhm
- Recommended Load Impedance: 10 kOhms or Greater
- Mic In Jack: XLR Type (Balanced/Phantom Power: DC 48 V, 10 mA)
- Inst In Jacks (L/MONO, R): 1/4'’ Phone Type
- Aux In Jack: Stereo Miniature Phone Type
- Output Jacks (L/MONO, R): 1/4'’ Phone Type
- Foot SW Jack: 1/4’’ TRS Phone Type
Power Requirements
- Power Supply: Alkaline (AA, LR6) or Carbon-Zinc Battery (AA, R6) x 6, AC Adaptor (PSA Series: Sold Separately)
- Current Draw: Maximum 195 mA (DC 9 V)
- Expected Battery life:
- Alkaline Battery (AA, LR6): 7.5 Hours Approx.
- Carbon-Zinc Battery (AA, R6): 1.5 Hhours Approx.
Dimensions
- Width: 173 mm (6-13/16’’)
- Depth: 158 mm (6-1/4’’)
- Height: 57 mm (2-1/4’’)
- Weight: 1.2 kg (2lbs 11 oz)
